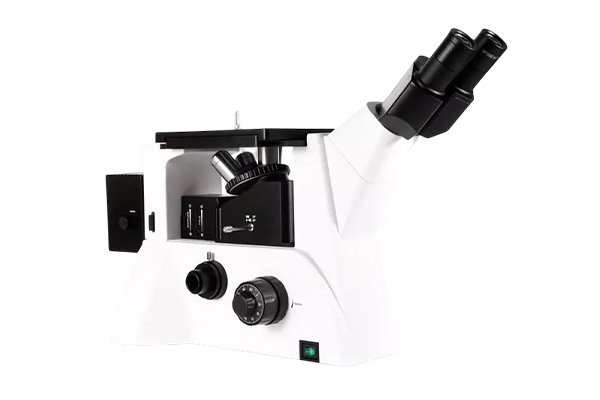

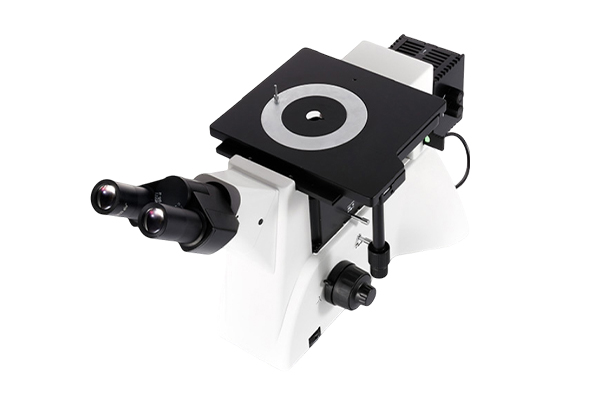

Inverted Metallographic Microscope

WY-20/WY-20BD
WY-20/WY-20BD inverted metallographic microscope adopts excellent infinite optical system and modular functional design concept, which can easily upgrade the system to realize polarized light observation, dark field observation and other functions. The compact and stable high-rigidity main body fully reflects the vibration-proof requirements of microscope operation. The ideal design that meets the requirements of ergonomics makes operation more convenient and comfortable, and the space is wider. It is suitable for microscopic observation of metallographic structure and surface morphology, and is an ideal instrument for metallurgy, mineralogy, and precision engineering research.

Consult

Features
Technical Indicators

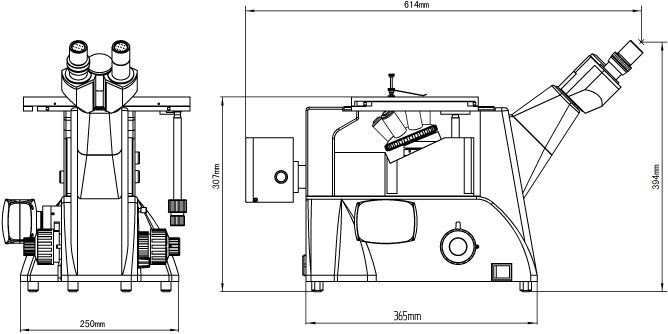

Overall Dimension

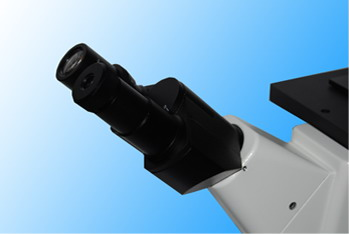

Observation system
Hinged binocular observation tube, 45° tilted, no need to lower the head or look straight for a long time during operation, so that the operator's neck and shoulders are effectively relieved. The flat-field wide-angle eyepiece field of view can reach Ф22mm, making visual observation wider and more comfortable, and can be adapted to rubber eye masks.

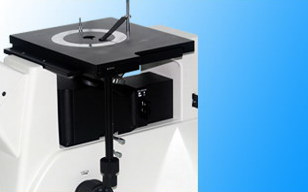

Mechanical stage
The mechanical movable stage has a built-in rotatable circular stage plate. The special-shaped observation window set in the plate is suitable for microscopic observation of samples of different specifications. When performing polarized light observation, the circular stage plate can be rotated to meet the requirements of polarized light microscopy.

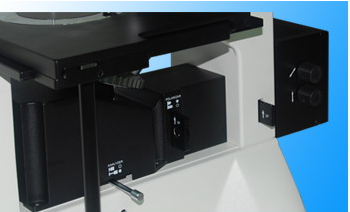

Illumination system

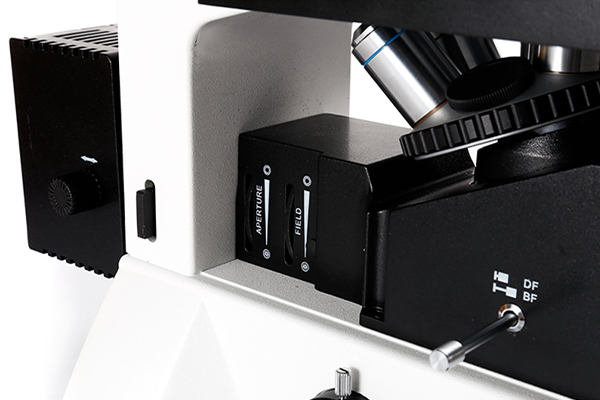

The Koehler illumination method is adopted. The aperture diaphragm and the field diaphragm can be adjusted by dials, and the adjustment is smooth and comfortable. The optional polarizer can adjust the polarization angle 360 degrees to observe the microscopic image under different polarization states. The bright and dark field illuminator can be selected to quickly upgrade the product system function. 12V30W and 12V50W halogen lamp illumination are optional.

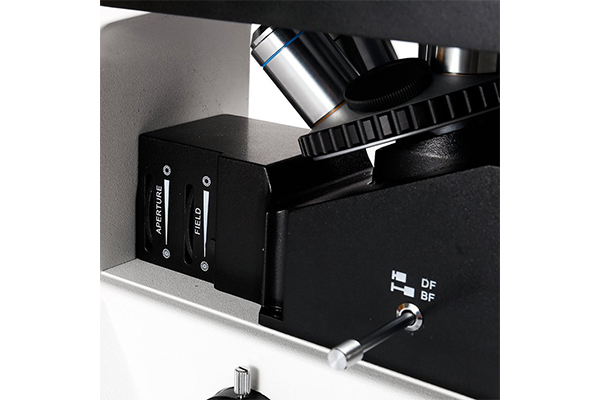

Dark field observation

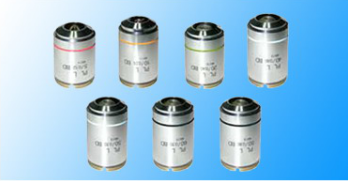

Equipped with high-quality bright and dark field objective lenses and dark field lighting devices, the harmful light of the lighting system is effectively eliminated, and the imaging effect of the dark field is significantly improved.
(WY-20BD adapted)
Standard Configuration
Technical specifications
Eyepiece

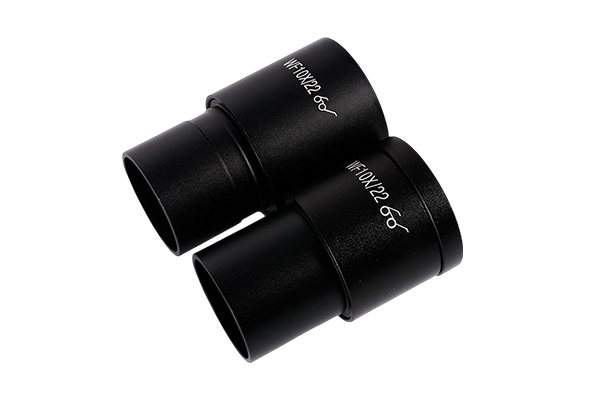

Large field of view WF10X (field of view Φ22mm)
Infinity
Plan achromatic objective
WY-20
(With bright field objective)

PL L10X/0.25 Working distance:5 mm
PL L20X/0.40 Working distance:8.80 mm
PL L50X/0.70 Working distance:3.68 mm
PL L100X/0.85 (dry type) Working distance: 0.40 mm
WY-20BD
(With bright field/dark field objective)

PL L5X/0.12 BD Working distance:8.05 mm
PL L10X/0.25 BD Working distance:7.86mm
PL L20X/0.40 BD Working distance:7.23mm
PL L50X/0.70 BD Working distance:1.75mm
Eyepiece tube
45˚ tilt, interpupillary distance adjustment range 53~75mm.
Focusing mechanism
Coaxial coarse and fine focusing, with locking device, fine-motion value: 2μm.
Converter
Five holes (inward ball positioning)
Stage
Mechanical moving stage, dimensions: 242mmX200mm, moving range 30mmX30mm.
The size of the circular rotatable stage is: the maximum outer diameter is 130mm, and the minimum aperture is less than 20mm.
Lighting system
WY-20
6V30W halogen lamp, brightness adjustable 6V30W
WY-20BD
12V50W halogen lamp, brightness adjustable 12V50W
Built-in field diaphragm, aperture diaphragm and plate-type polarizer
With frosted glass, yellow, green and blue filters
Optional accessories

Eyepiece
Reticulated eyepiece 10X (Φ22mm)
Objective
WY-20
5X, 40X, 60X, 80X, 100X (Oil) bright field objective
WY-20BD
40X, 60X, 80X, 100X bright/dark field objectives

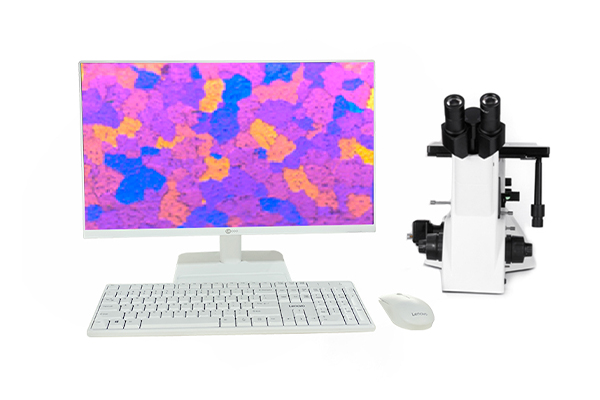

CCD connector
0.5X、1X

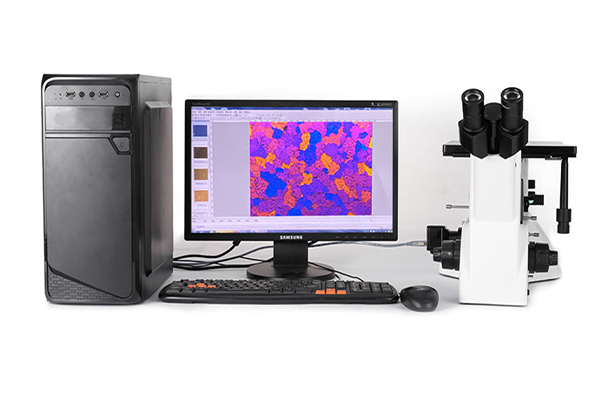

Camera
USB output: 1.3/3/5/10 megapixels
VIDEO output: 380/520 TV lines

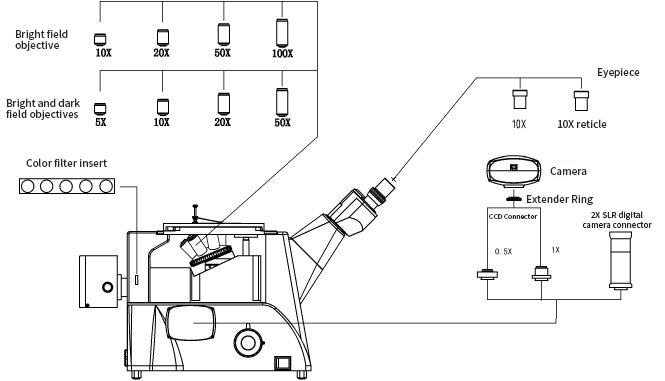

System Diagram

Technical specifications
Eyepiece	Large field of view WF10X (field of view Φ22mm)
Infinity Plan achromatic objective	WY-20 (With bright field objective)		PL L10X/0.25 Working distance:5 mm
			PL L20X/0.40 Working distance:8.80 mm
			PL L50X/0.70 Working distance:3.68 mm
			PL L100X/0.85 (dry type) Working distance: 0.40 mm
	WY-20BD (With bright field/dark field objective)		PL L5X/0.12 BD Working distance:8.05 mm
			PL L10X/0.25 BD Working distance:7.86mm
			PL L20X/0.40 BD Working distance:7.23mm
			PL L50X/0.70 BD Working distance:1.75mm
Eyepiece tube	45˚ tilt, interpupillary distance adjustment range 53~75mm.
Focusing mechanism	Coaxial coarse and fine focusing, with locking device, fine-motion value: 2μm.
Converter	Five holes (inward ball positioning)
Stage	Mechanical moving stage, dimensions: 242mmX200mm, moving range 30mmX30mm.
	The size of the circular rotatable stage is: the maximum outer diameter is 130mm, and the minimum aperture is less than 20mm.
Lighting system	WY-20		6V30W halogen lamp, brightness adjustable 6V30W
	WY-20BD		12V50W halogen lamp, brightness adjustable 12V50W
	Built-in field diaphragm, aperture diaphragm and plate-type polarizer
	With frosted glass, yellow, green and blue filters
Optional accessories	Eyepiece			Reticulated eyepiece 10X (Φ22mm)
	Objective	WY-20		5X, 40X, 60X, 80X, 100X (Oil) bright field objective
		WY-20BD		40X, 60X, 80X, 100X bright/dark field objectives
	CCD connector			0.5X、1X
	Camera			USB output: 1.3/3/5/10 megapixels VIDEO output: 380/520 TV lines
