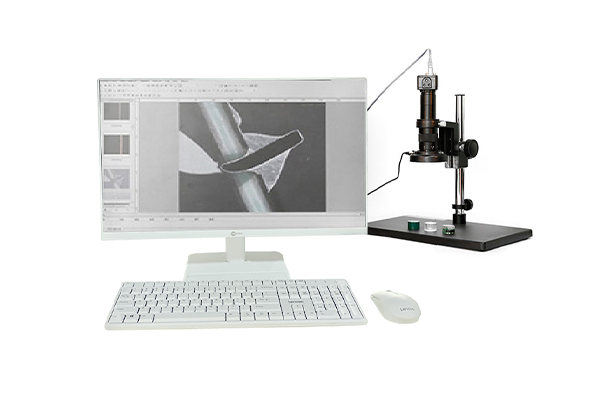

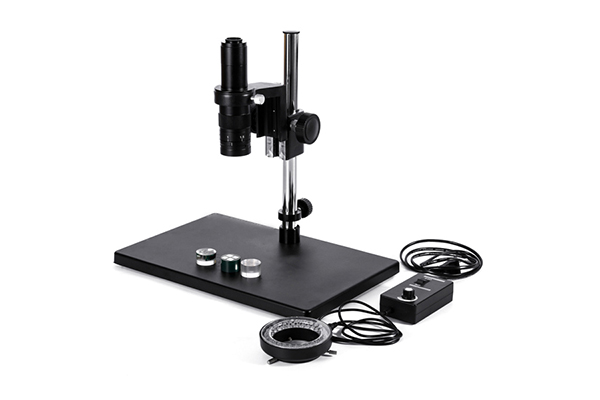

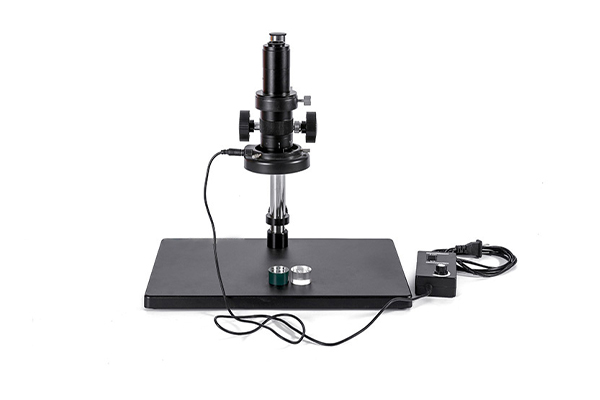

Monocular Video Microscope

WY-10A
The monocular video microscope provides a high-quality optical system and a durable and reliable operating mechanism. This model has a long working distance, a large clear range, a complete range of accessories and is easy to operate. It can be widely used in industries and departments such as medical and health, agriculture, forestry, geology, and electronic precision machinery, and is particularly suitable for LED, PCB inspection, stamping and electroplating inspection, and electronic component inspection.

Consult

Features
Technical Indicators
Overall Dimension


Working platform size: 380*250*25mm Column size: 355mm Handwheel focusing size: 60mm Lens height: 165mm (0.5X standard lens) Serial number Project Technical indicators 1 Host zoom range 0.7X-4.5X 2 Magnification range 18X-185X (if equipped with 15-inch LCD display) 3 Total multiples Optical zoom*digital zoom 4 Working distance 90-200mm 5 Lifting adjustment range 275mm 6 Handwheel focusing range 60mm 7 Camera eyepiece 0.5X standard (optional: 0.35X, 0.75X, 1X, 1.5X, 2X) 8 Auxiliary large objective lens (optional) 0.3X、0.5X、0.75X、1.5X、2X

Serial number	Project	Technical indicators
1	Host zoom range	0.7X-4.5X
2	Magnification range	18X-185X (if equipped with 15-inch LCD display)
3	Total multiples	Optical zoom*digital zoom
4	Working distance	90-200mm
5	Lifting adjustment range	275mm
6	Handwheel focusing range	60mm
7	Camera eyepiece	0.5X standard (optional: 0.35X, 0.75X, 1X, 1.5X, 2X)
8	Auxiliary large objective lens (optional)	0.3X、0.5X、0.75X、1.5X、2X
