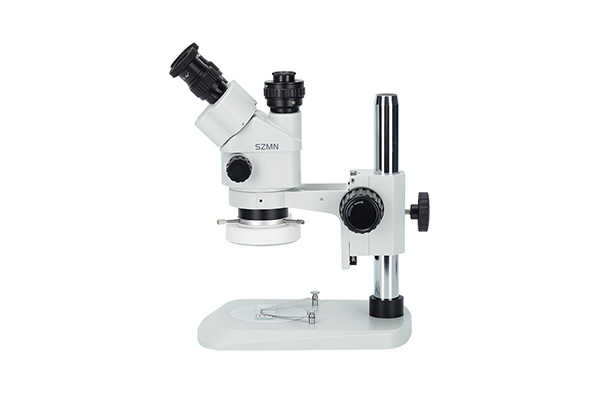

Microscope

JX-SZM
With an excellent optical system, the field of view is wider and clearer, and high-quality and bright imaging can be maintained at any magnification.
Suitable for assembly and inspection of PCB, LCD, and IC.

Consult

Features
Technical Indicators
Overall Dimension

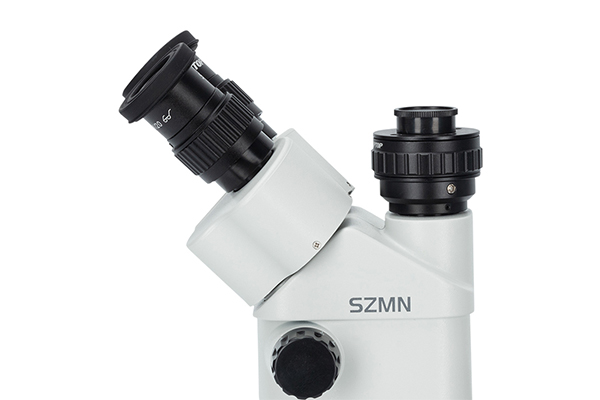

Observation head 45° tilted binocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece 45° tilted trinocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece 60° tilted binocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece Eyepiece High eye point, large field of view eyepiece WF10X/22mm, adjustable diopter, can be equipped with micrometer High eye point, large field of view eyepiece WF15X/16mm, adjustable diopter, can be equipped with micrometer High eye point, large field of view eyepiece WF20X/12mm, adjustable diopter, with micrometer Objective 0.67X-4.5X continuous zoom objective lens, working distance 100mm 0.8X-5X continuous zoom objective lens, working distance 100mm 1X-6.7X continuously variable objective lens, working distance 100mm Auxiliary objective 0.3X/287mm，0.4X/217mm，0.5X/187mm，0.7X/120mm，1.5X/47mm，2X/26mm Frame One-piece vertical arm type with frame Split column type, can be matched with any frame Base Flat Base With light source base Photographic equipment 0.35X/0.5X/0.65X/1X video adapter, C-type interface, adjustable focus

Observation head	45° tilted binocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece
	45° tilted trinocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece
	60° tilted binocular observation head, interpupillary distance adjustment: 54mm-76mm, fixed eyepiece
Eyepiece	High eye point, large field of view eyepiece WF10X/22mm, adjustable diopter, can be equipped with micrometer
	High eye point, large field of view eyepiece WF15X/16mm, adjustable diopter, can be equipped with micrometer
	High eye point, large field of view eyepiece WF20X/12mm, adjustable diopter, with micrometer
Objective	0.67X-4.5X continuous zoom objective lens, working distance 100mm
	0.8X-5X continuous zoom objective lens, working distance 100mm
	1X-6.7X continuously variable objective lens, working distance 100mm
Auxiliary objective	0.3X/287mm，0.4X/217mm，0.5X/187mm，0.7X/120mm，1.5X/47mm，2X/26mm
Frame	One-piece vertical arm type with frame
Frame	Split column type, can be matched with any frame
Base	Flat Base
Base	With light source base
Photographic equipment	0.35X/0.5X/0.65X/1X video adapter, C-type interface, adjustable focus
