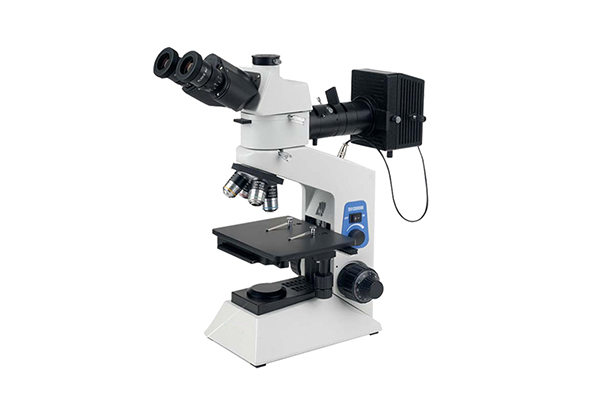

Microscope

JX-200MR

Consult

Features
Technical Indicators
Overall Dimension

•Optical system: finite distance chromatic aberration correction optical system, good image quality •Eyepiece and objective lens, a) High eye point flat field eyepiece PL10X, line field number 18mm, provides a wide and flat observation space, can be installed with various types of micrometers b) Long working distance professional achromatic metallographic objective lens c) No cover glass design, excellent image quality •Illumination system, epi-type Kohler illumination, and anti-reflection structure design, effectively prevent the interference of reflected light, so that the image is clearer and the field of view is better •Adaptive wide voltage 100V-240V, 6V/30W halogen lamp, adjustable filament center, continuously adjustable light intensity, more sufficient lighting, effectively improve the quality of the image •Stage: Compound mechanical moving platform, low hand position coaxial adjustment, and attached &180mm x 145mm flat platform, convenient for placing larger samples •Accessories, a) Four color filters of yellow, green, blue and white can be added to the illumination light path to provide different chromaticity illumination for observing various samples b) Polarizer and analyzer can be added to the illumination light path to achieve polarized light observation c) Polarizer ±25. Adjustable, can effectively adjust the orthogonal state or field contrast
Optical system Finite distance chromatic aberration corrected optical system Observation tube Standard configuration: chain-type binoculars, 30° tilt, 360° rotation, adjustable vision Optional, chain type trinocular, 30. Tilt, 360° rotation, adjustable vision Eyepiece High eyepoint flat field eyepiece PL10X/18 mm Objective Long working distance plan achromatic professional metallographic objective lens 5X, 10X, 20X, 50X, 100X Converter Standard: Four-hole converter Optional: Five-hole converter Focusing mechanism Coaxial focusing mechanism for coarse and fine adjustment, with tension adjustment and upper limit device, coarse adjustment stroke: 25mm, fine adjustment accuracy: 0.002mm Stage Double-layer mechanical stage, size: 140mm x 132mm (with 180mm x 145mm flat platform) Lighting system Reflective Kohler lighting, adaptive wide voltage 100V-240V, 6V/30W halogen lamp, light intensity continuously adjustable Appendix Focusable C-mount, polarizing accessories: polarizer plate, analyzer plate Objective lens parameter table Category Magnification Numerical Aperture (N.A.) Working distance (W.D) Cover glass thickness Conjugate (mm) Professional long working distance plan-field achromatic Metallographic objective 5X 0.13 15.5mm 0 195 10X 0.25 8.7mm 0 195 20X 0.40 8.8mm 0 195 50X 0.60 5.10mm 0 195 100X 0.80 2.00mm 0 195 Eyepiece parameter table Eyepiece PL10X/18 PL10X/18R WF15X/13 WF15X/13R WF20X/10 WF20X/10R Field of view 18mm 18mm 13mm 13mm 10mm 10mm

Optical system	Finite distance chromatic aberration corrected optical system
Observation tube	Standard configuration: chain-type binoculars, 30° tilt, 360° rotation, adjustable vision
Observation tube	Optional, chain type trinocular, 30. Tilt, 360° rotation, adjustable vision
Eyepiece	High eyepoint flat field eyepiece PL10X/18 mm
Objective	Long working distance plan achromatic professional metallographic objective lens 5X, 10X, 20X, 50X, 100X
Converter	Standard: Four-hole converter
Converter	Optional: Five-hole converter
Focusing mechanism	Coaxial focusing mechanism for coarse and fine adjustment, with tension adjustment and upper limit device, coarse adjustment stroke: 25mm, fine adjustment accuracy: 0.002mm
Stage	Double-layer mechanical stage, size: 140mm x 132mm (with 180mm x 145mm flat platform)
Lighting system	Reflective Kohler lighting, adaptive wide voltage 100V-240V, 6V/30W halogen lamp, light intensity continuously adjustable
Appendix	Focusable C-mount, polarizing accessories: polarizer plate, analyzer plate

Category	Magnification	Numerical Aperture (N.A.)	Working distance (W.D)	Cover glass thickness	Conjugate (mm)
Professional long working distance plan-field achromatic Metallographic objective	5X	0.13	15.5mm	0	195
	10X	0.25	8.7mm	0	195
	20X	0.40	8.8mm	0	195
	50X	0.60	5.10mm	0	195
	100X	0.80	2.00mm	0	195

Eyepiece	PL10X/18	PL10X/18R	WF15X/13	WF15X/13R	WF20X/10	WF20X/10R
Field of view	18mm	18mm	13mm	13mm	10mm	10mm
