Microscope

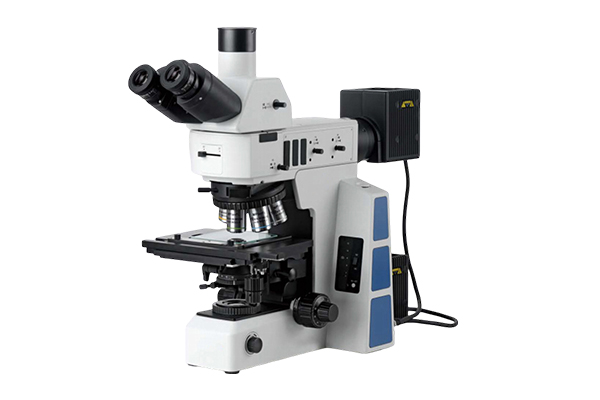

JX-50M
It integrates many innovations, and follows the international leading design trend from appearance to performance. The multi-level beam splitting ratio observation head provides a new and comfortable wide field of view experience. It is committed to expanding the new pattern of the industrial field and providing customers with complete industrial inspection solutions.

Consult

Features
Technical Indicators
Overall Dimension


Optical system Infinity chromatic aberration optical system Observation method Brightfield/Darkfield/Polarized/DIC Observation tube 5°~35° adjustable inclination, inverted image, infinite distance three-way observation head, Pupillary distance adjustment range: 50-76mm, Three-speed split ratio: 50:50 or 100:0 or 0:100 30° tilt, erect image, infinity hinged trinocular observation tube, Interpupillary distance adjustment: 50mm-76mm, Two-speed split ratio: 100:0 or 0:100 30° tilt, inverted image, infinite hinged trinocular observation tube, Pupillary distance adjustment: 50mm-76mm, Three-speed split ratio: 100.0 or 20:80 or 0:100 Eyepiece High eye point, wide field of view, flat field eyepiece PL10X/25mm, diopter adjustable, with single scale crosshair plate Objective Bright and dark field semi-apochromatic metallographic objective lens (5X, 10X, 20X, 50X, 100X] Converter Bright and dark field five-hole converter, bright and dark field six-hole converter, with DIC slot Bright field six-hole adapter, bright field seven-hole adapter, with DIC slot Focusing mechanism Transflective and reflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 25mm, fine adjustment accuracy 0.001mm. With anti-slip adjustment tension device and random upper limit device, built-in 100-240V wide voltage system, dual power output, digital dimming, with light intensity setting and reset function, reflection and transmission light switching switch, built-in transmission color filter system LBD, ND6, ND25 Reflection rack, low hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 25mm, fine adjustment accuracy 0.001mm. With anti-slip adjustment tension device and random upper limit device, built-in 100-240V wide voltage system, digital dimming, with light intensity setting and reset function Stage Right-hand 4-inch mechanical stage, travel 102mm x 105mm, with Y-axis locking mechanism, with light shield, with glass stage plate, with metal stage plate (for transmission/reflection) Condenser Swing-out achromatic condenser N.A.0.9, variable aperture diaphragm, center adjustable Reflection lighting system Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, center adjustable; with bright and dark field illumination switching device; with filter slot and polarizing device slot Light Room 12V100W halogen lamp housing, for transmission and reflection, [(order center] 12V/100W halogen lamp (PHLIPS 7724) Photography and Videography 0.35X/0.5X/0.65X video adapter, C-mount, focusable; 1X video adapter, C-mount Other Polarizer plate, fixed analyzer plate, 360° rotatable analyzer plate; DIC differential interference spectrometer, reflection interference filter set, high-precision micrometer

Optical system	Infinity chromatic aberration optical system
Observation method	Brightfield/Darkfield/Polarized/DIC
Observation tube	5°~35° adjustable inclination, inverted image, infinite distance three-way observation head, Pupillary distance adjustment range: 50-76mm, Three-speed split ratio: 50:50 or 100:0 or 0:100
	30° tilt, erect image, infinity hinged trinocular observation tube, Interpupillary distance adjustment: 50mm-76mm, Two-speed split ratio: 100:0 or 0:100
	30° tilt, inverted image, infinite hinged trinocular observation tube, Pupillary distance adjustment: 50mm-76mm, Three-speed split ratio: 100.0 or 20:80 or 0:100
Eyepiece	High eye point, wide field of view, flat field eyepiece PL10X/25mm, diopter adjustable, with single scale crosshair plate

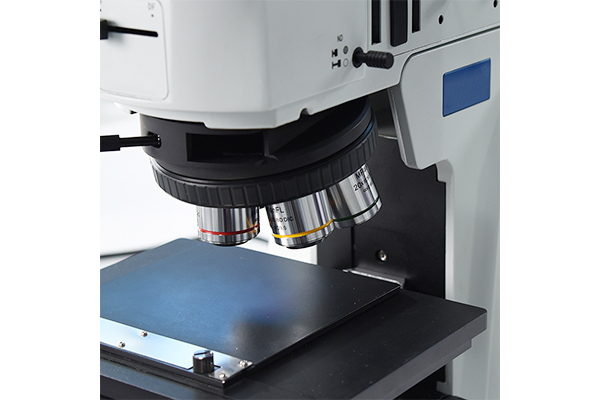

Objective	Bright and dark field semi-apochromatic metallographic objective lens (5X, 10X, 20X, 50X, 100X]
Converter	Bright and dark field five-hole converter, bright and dark field six-hole converter, with DIC slot
Converter	Bright field six-hole adapter, bright field seven-hole adapter, with DIC slot
Focusing mechanism	Transflective and reflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 25mm, fine adjustment accuracy 0.001mm. With anti-slip adjustment tension device and random upper limit device, built-in 100-240V wide voltage system, dual power output, digital dimming, with light intensity setting and reset function, reflection and transmission light switching switch, built-in transmission color filter system LBD, ND6, ND25
Focusing mechanism	Reflection rack, low hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 25mm, fine adjustment accuracy 0.001mm. With anti-slip adjustment tension device and random upper limit device, built-in 100-240V wide voltage system, digital dimming, with light intensity setting and reset function
Stage	Right-hand 4-inch mechanical stage, travel 102mm x 105mm, with Y-axis locking mechanism, with light shield, with glass stage plate, with metal stage plate (for transmission/reflection)
Condenser	Swing-out achromatic condenser N.A.0.9, variable aperture diaphragm, center adjustable
Reflection lighting system	Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, center adjustable; with bright and dark field illumination switching device; with filter slot and polarizing device slot
Light Room	12V100W halogen lamp housing, for transmission and reflection, [(order center] 12V/100W halogen lamp (PHLIPS 7724)
Photography and Videography	0.35X/0.5X/0.65X video adapter, C-mount, focusable; 1X video adapter, C-mount
Other	Polarizer plate, fixed analyzer plate, 360° rotatable analyzer plate; DIC differential interference spectrometer, reflection interference filter set, high-precision micrometer
