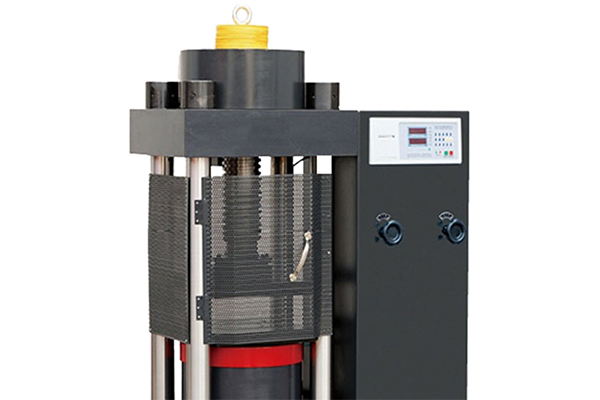

Digital Pressure Testing Machine

YES-3000D
This machine adopts the structure of integrating the main engine and hydraulic system, which is compact and exquisite. It adopts hydraulic loading and electronic force measurement, has the functions of loading rate display, peak value holding, etc., and is equipped with a micro printer.

Consult

Features
Technical Indicators
Overall Dimension

Hydraulic system
The hydraulic oil in the oil tank drives the high-pressure pump into the oil circuit through the motor, flows through the oil return valve, and enters the oil cylinder. The force measuring instrument collects and analyzes data through the sensor, displays the real-time force value, and the tester controls the flow through the oil delivery valve to achieve the speed of the test force rate.
Force measuring system
1. Manually adjust the oil return valve, the operation is simple and flexible;
2. It has the maximum load peak holding function;
3. It has the function of dynamic display of loading rate;
4. It has a random test report with test date, number, breaking load, compressive strength, etc.

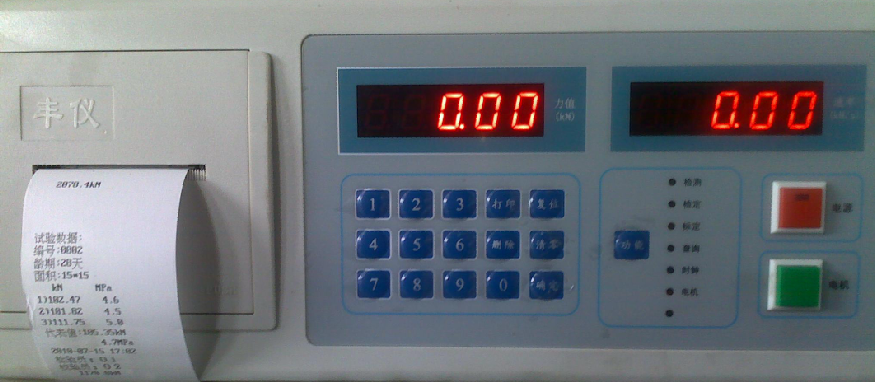

Instrument interface
Safety protection device
When the test force exceeds 3% of the maximum test force, overload protection, oil pump motor stops.
Name
Parameter
Maximum test force (kN)
3000
Test force measurement range
10%-100%
Relative error of test force indication
＜±1% of indicated value
Distance between upper and lower pressure plates (mm)
370
Piston stroke(mm)
100
Column spacing (mm)
380
Pressure plate size (mm)
370*370
Host size (mm)
1000*800*1700
Motor power (kW)
0.75
Total weight (kg)
1800

Factory standard configuration list
Name
Quantity
Remark
Testing machine
1 units
Including motor, oil pump, oil return valve
Force measuring instrument
1 units
On the host, with micro printer
Pressure Sensors
1 pc
AVIC Electro-Mechanical Test
Upper and lower pressure plates
1 set
----------
Instructions\Certificate\Packing List
1 set
----------

Name	Parameter
Maximum test force (kN)	3000
Test force measurement range	10%-100%
Relative error of test force indication	＜±1% of indicated value
Distance between upper and lower pressure plates (mm)	370
Piston stroke(mm)	100
Column spacing (mm)	380
Pressure plate size (mm)	370*370
Host size (mm)	10008001700
Motor power (kW)	0.75
Total weight (kg)	1800

Name	Quantity	Remark
Testing machine	1 units	Including motor, oil pump, oil return valve
Force measuring instrument	1 units	On the host, with micro printer
Pressure Sensors	1 pc	AVIC Electro-Mechanical Test
Upper and lower pressure plates	1 set	----------
Instructions\Certificate\Packing List	1 set	----------
