Model | WYL-100Z |
Spindle speed | 2840r/min |
Platform X Mobile | Manual 50mm (scale 0.05mm) |
Platform Y travel | Automatic/Manual (280mm) |
Platform Y speed | 0-200mm (stepless speed regulation) |

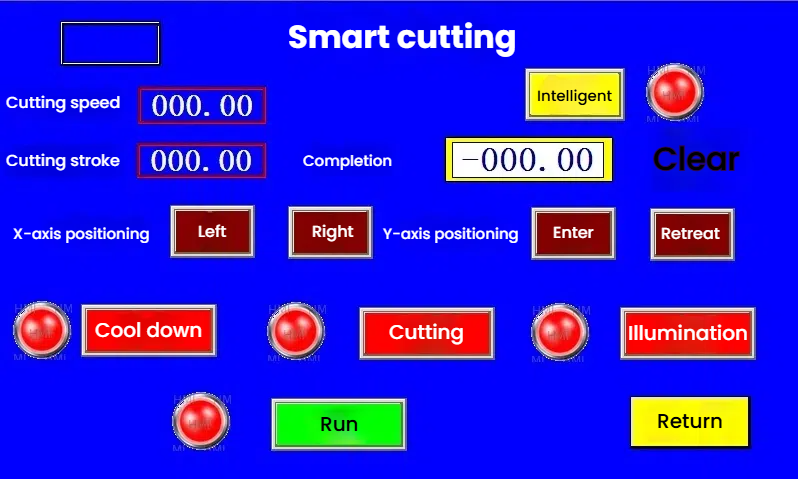

Control System | 8-inch color touch screen, PLC control system |
Maximum cutting size | 380*130*100mm |
Maximum cutting diameter | 110mm |
Cutting method | Intelligent automatic/manual |
Send method | The advance and retreat ratio can be set arbitrarily |
Effective feed distance | 250mm |
Completion tracking | LCD digital display (real-time display) |
Cutting table size | 310*280mm |
Cutting disc specifications | （300-350）*（2-3）*32mm |
Support table specifications | Split double-layer movable platform |
Cutting speed | 1-100mm/min (stepless speed regulation) |
Online speed control | Arbitrary adjustment (1-100mm/min) |
Reset method | Automatic reset (completion tracking) |

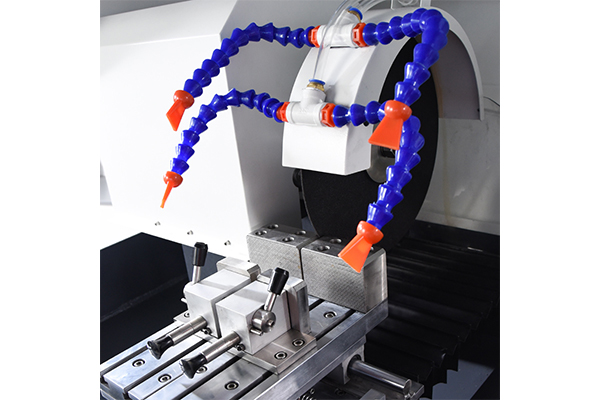

Cooling system | Automatic (water cooling 3 channels) |
Water tank capacity | 60L |
Motor power | 4.0KW |
Machine Type | Floor standing integrated |
Power supply | 380V |
Weight | 360KG |
Standard Configuration: | |
Host | 1 units |
Cooling system | One set |
Y-axis moving platform | One set (on the host) |
X/Y bidirectional positioning platform | One set (on the host) |
Push fixture | Two pairs |
Random Tools | One set |
Fine section | Two pieces |
Technical Documents | One instruction manual, one certificate, one warranty card |
Optional | Disc clamp, rack clamp Universal clamp, longitudinal section clamp |
Other | Special workpieces can be customized |
